Datasheet MCU, EEPROM, FLASH

[Дядя Федор]

если повторюсь, сильно не пинать...

9s12dt128bdgv1.pdf

9s12dt256dgv3.pdf

11etd.pdf

11rm.pdf

27C256.pdf

68hc_7_05h12.pdf

311_3_095237_MC68HC05B4.pdf

370.doc

Am28F020.pdf

an2206.pdf

an8495.pdf

an8495.pdf

at93c46.pdf

atmega8.pdf

ATtiny13_24SI.pdf

attiny2313.pdf

dg232v20.pdf

dg245v20.pdf

dlptxrx_v13_ds.pdf

FT2232C_Proj01.pdf

FT2232C_Proj02.pdf

hc05b6.pdf

hc05l28.pdf

hc05x16.pdf

lm78l05.pdf

m68hC12b_Family.pdf

[Дядя Федор]

продолжу

MAX_232.PDF

mc68hc08az32.pdf

mc68hc08az32a.pdf

mc68hc11ka4.pdf

[Дядя Федор]

и еще

MC68HC11KG4_100pin.pdf

mc68hc11p2.pdf

MC33199.pdf

megamos_crypto.pdf

nm93cs46.pdf

pcf7930_7931_7935.pdf

PCF7936.pdf

pcf7946_pp.pdf

pcf7946_pp.pdf

s12dt128eeprom.pdf

s12dt128flash.pdf

s12dt256eeprom.pdf

s12dt256flash.pdf

s24_X2444.pdf

spnd005_TMS.pdf

spnu127a_TMS.pdf

SST49LF004A.pdf

SST49LF004B.pdf

TI_23mmtrpd.pdf

TI_RI_TRP_R9WKrefGuide.pdf

tk5550.pdf

u2770B.pdf

u2770B.pdf

W29C512AP_90.pdf

Zif.pdf

[Дядя Федор]

и по мотям, если повторюсь, не пинать....

MC68HC11KG4.pdf

mc68hc11p2.pdf

mc68hc11pa8.pdf

mc68hc705v12.pdf

mc68hc908ab32.pdf

mc68hc908as60.pdf

mc68hc908az60.pdf

mc68hc908az60a.pdf

mc68hc912d60.pdf

mc68hc912d60a.pdf

mc68hc912dg128.pdf

mc912dt128a.pdf

[SanSanych]

Спасибо ALEX

Не навсех форумах встретишь такие разжёванные ответы

[sasha]

здесь немного есть..

http://www.datasheetcatalog.net/

[asixron]

добавлю,вроде нет такой-MC9S12H256

datasheet.pdf

[andrei22]

вот еще немного по маскам

____________MCU___________________Mask_Set.rar

[partisan]

MX29F040C Flash memory прогера Tacho Universal

datasheet.pdf

[KonT]

Попытался интерпритировать микросхему

ZC437934CFN

BB 34095

B 58578

3E82K

QZFT9640



получилось что соответствует следующей: MC68HC11E20 http://www.datasheetcatalog.org/datasheet2/9/0p9w4g2cu52zqf86co7fy8oowcwy.pdf

но гложат меня сомнения о достоверности, поправте меня если я неправ.

Изменено 8 июля, 2009 пользователем KonT

[Slavik k]

3E82K маска , что соответствует MC68HC11E20 .

Изменено 30 августа, 2010 пользователем Slavik k

[sasha]

У кого нет до сих пор Licznikа :)

[VicTim]

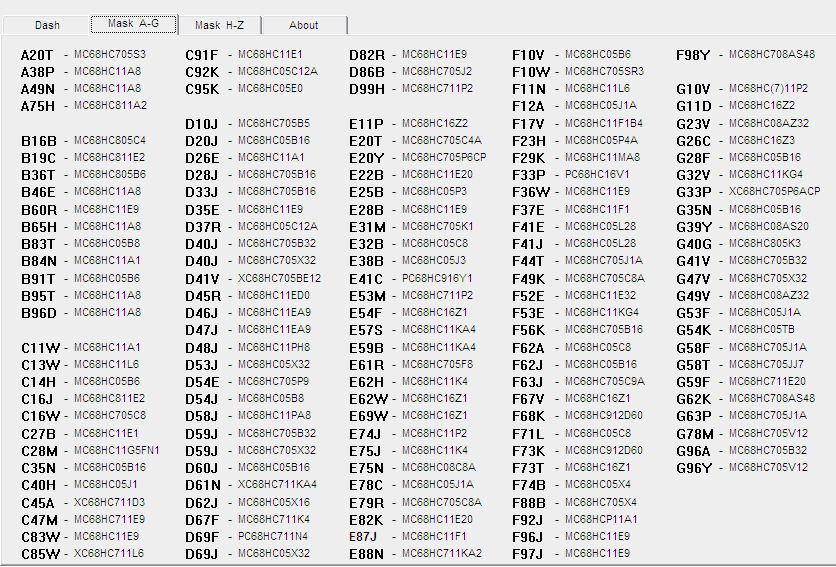

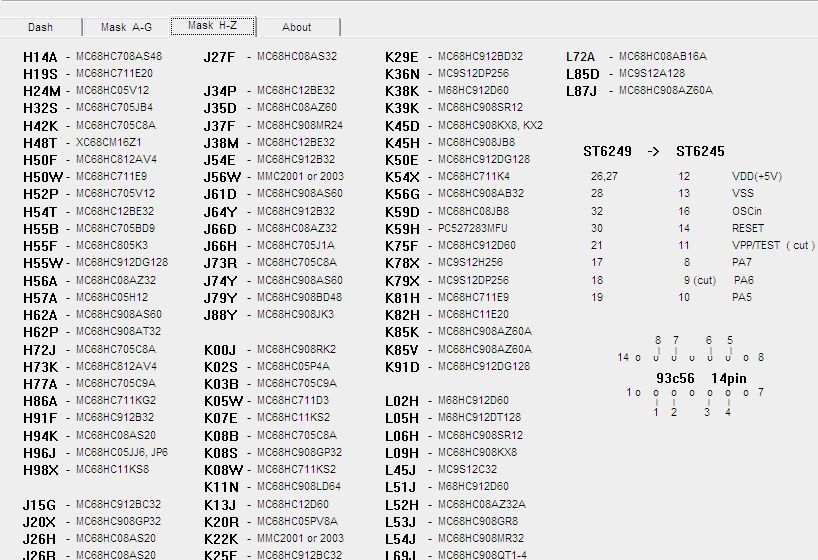

Прога.

Masksets_VmoSoft.rar

[GSY]

Кто может подсказать, что за маска проц. Motorola -8J28H.и где найти дату на это чудо.

[Andron_h]

А что за щиток то? или хотяб с какой машины. А то как то раз я был уверен что буква "U" оказалось подстертым "0"

[Шурик]

Вот еще по маскам.

masks.txt

Изменено 5 января, 2010 пользователем Шурик

[Sergeii]

TL1451A

tl1451ac.pdf

[Tuner]

Motorola MCU Mask:



*A20T MC68HC705S3 ?

*A38P MC68HC11A8

*A46E MC68705R3CS

*A49N MC68HC11A8

*A75H MC68HC811A2

*B16B MC68HC805C4

*B19C MC68HC811E2

*B35F MC68HC11A0

*B36T MC68HC805B6

*B46E MC68HC11A8

*B60R MC68HC11E9

*B65H MC68HC11A8

*B76T MC68HC11A8 ??

*B77M MC68HC11F1

*B83T MC68HC05B8

*B84N MC68HC11A1

*B84T MC68HC11A1

*B91T MC68HC05B6

*B95T MC68HC11A8

*B96D MC68HC11A8

*B96T MC68HC05C8 ??

*C10C MC68HC05M4

*C11W MC68HC11A1

*C12R MC68882FN20A

*C15J MC68HC11F1

*C13W MC68HC11L6

*C14H MC68HC05B6

*C16J MC68HC811E2

*C16W MC68HC705C8

*C17F MC68HC11D3 ??

*C25T MC68HC05E1

*C27B MC68HC11E1

*C27T MC68HC05P8

*C28M MC68HC11G5FN1

*C28W MC68HC05P9

*C35N MC68HC05B16 ??

*C40H MC68HC05J1

*C45A XC68HC711D3

*C46A MC68HC811A8

*C47M MC68HC711E9

*C61A MC68HC05P* ??

*C75G ?? SOIC28

*C83W MC68HC11E9

*C85W XC68HC711L6

*C90T MC68HC05P8

*C91F MC68HC11E1

*C92K MC68HC05C12A

*C93W MC68HC711K4

*C94R MC68HC11F1

*C95K MC68HC05E0

*C96K MC68HC11E9

*C96N MC68HC11A1,A8

*C99K MC68HC05B4

*D10J MC68HC705B5

*D12A MC68B09EP

*D15G MC68HC05E1

*D17E MC68HC05T3

*D18E MC68HC05P4 ??

*D20J MC68HC05B16

*D25A MC68HC05P4

*D26E MC68HC11A1

*D28J MC68HC705B16

*D28N MC68HC05E6 ??

*D28T MC68HC705F6B

*D32N MC68HC05E1, MC68HC705E1

*D33J MC68HC705B16 ??

*D35E MC68HC11E9

*D37R MC68HC05C12A

*D40J MC68HC705B32

*D40J MC68HC705X32

*D41V XC68HC705BE12

*D43F MC68HC11K4

*D43R MC68HC711E20

*D45R MC68HC11ED0

*D46J MC68HC11EA9

*D47J MC68HC11EA9

*D48A MC68HC05H2

*D48J MC68HC11PH8

*D51D MC68HC05P8

*D53J MC68HC05X32

*D54E MC68HC705P9

*D54J MC68HC05B8

*D56G MC68HC705P6A

*D58J MC68HC11PA8

*D58N MC68HC11K1

*D59J MC68HC705B32

*D59J MC68HC705X32

*D60J MC68HC05B16

*D61N XC68HC711KA4

*D62C MC68030FE20B

*D62J MC68HC05X16

*D64J MC68HC11P2 11PH8 ?

*D67F MC68HC711K4

*D68C MC68HC705C5

*D69F PC68HC711N4

*D69J MC68HC05X32

*D73W MC68HC705G10

*D82R MC68HC11E9

*D84M MC68HC05H2

*D85F MC86HC711D3

*D86B MC68HC705J2

*D99H MC68HC711P2

*E11P MC68HC16Z2

*E20T MC68HC705C4A

*E20Y MC68HC705P6CP

*E22B MC68HC11E20

*E25B MC68HC05P3

*E28B MC68HC11E9

4E28B MC68HCP11E1

*E30A MC68HC05K1

*E31A MC68HC05K0

*E31M MC68HC705K1

*E32B MC68HC05C8

*E32A MC68HC705P6

*E36F MC68HC05C8 ??

*E38B MC68HC05J3

*E40A MC68HC705C5

*E41C PC68HC916Y1

*E50H MC68HC05B6

*E50W MC68HC711E9

*E53M MC68HC711P2

*E54F MC68HC16Z1

*E57S MC68HC11KA4, MC68HC11KS4

*E59B MC68HC11KA4

*E61H MC68HC11F1

*E61R MC68HC705C8

*E61W MC68HC705F8

*E62H MC68HC11K4

*E62W MC68HC16Z1

*E69W MC68HC16Z1

*E74J MC68HC11P2

*E74H MC68HC11A1FN

*E75J MC68HC11K4

*E75N MC68HC05C8A ??

*E78C MC68HC05J1A

*E79R MC68HC705C4A, C8A

*E82K MC68HC11E20

*E87J MC68HC11F1

*E88N MC68HC711KA2

*E98K MC68HC705P6

*F10V MC68HC05B6

*F10W MC68HC705SR3

*F11N MC68HC11L6

*F12A MC68HC05J1A

*F15H MC68HC05B4 ???

*F17V MC68HC11F1B4

*F19C MC68EC030CFE25C

*F21S MC68HC705MC4

*F23H MC68HC05P4A

*F28B MC68HC05E6

*F29K MC68HC11MA8

*F33P PC68HC16V1

*F36W MC68HC11E9

*F37E MC68HC11F1

*F41E MC68HC05L28

*F41J MC68HC05L28

*F44T MC68HC705J1A

*F47V MC68HC705P3 ?

*F49K MC68HC705C8A

*F52E MC68HC11E32

*F52W MC68HC05P18 (28 pins)

*F53E MC68HC11KG4

*F56K MC68HC705B16

*F60M MC68HC11KA4, MC68HC11KS4

*F62A MC68HC05C8

*F62J MC68HC05B16

*F63J MC68HC705C9A

*F67V MC68HC16Z1

*F68K MC68HC912D60

*F71L MC68HC05C8 or 705C8

*F73K MC68HC912D60

*F73T MC68HC16Z1

*F74B MC68HC05X4

0F74K MC68376 ???

*F75B MC68HC705P3

*F80B MC68HC705P6

*F82B MC68HC05E6 (SO28) ?

*F82W MC68HC705V8

*F88B MC68HC705X4

*F92J MC68HCP11A1

*F96J MC68HC11E9

*F97J MC68HC11E9

*F98Y MC68HC708AS48

*G10V MC68HC(7)11P2

*G11D MC68HC16Z2

*G23V MC68HC08AZ32

*G26C MC68HC16Z3

*G28F MC68HC05B16

*G32V MC68HC11KG4

*G33P MC68HC705P6ACP

*G35N MC68HC05B16

*G39Y MC68HC08AS20

*G40G MC68HC805K3

*G41V MC68HC705B32

*G44P MC68HC705RC16..17

*G47V MC68HC705X32

*G49V MC68HC08AZ32

*G53F MC68HC05J1A

*G54K MC68HC05TB

3G56P MC68HC705BD7P

*G58C MC68HC705JP7

*G58F MC68HC705J1A

*G58T MC68HC705JJ7 or JP7

*G59F MC68HC711E20

*G62K MC68HC708AS48

*G63P MC68HC705J1A

*G64R MC68HC805P18

*G72G MC68HC05E6 ?

*G78M MC68HC705V12

*G96A MC68HC705B32

*G96Y MC68HC705V12

*H14A MC68HC708AS48

*H19S MC68HC711E20

*H24A MC68HC11A8 ???

*H24M MC68HC05V12

*H27B MC68HC11KS2

*H30R MC68HC711PH8 ?

*H32S MC68HC705JB4

*H42K MC68HC705C8A

*H42D MC68HC05V12

*H44H MC68HC805P18 ???

*H48T MC68CM16Z1

*H50F MC68HC812AV4

*H50W MC68HC711E9

*H51A MC68HC705E6

*H52A MC68HC05X32 ?

*H52P MC68HC705V12

3H54K MC68HC11FL0PU1

*H54T MC68HC12BE32

*H55B MC68HC705BD9

*H55F MC68HC805K3

*H55W MC68HC912DG128, DA128

*H56A MC68HC08AZ32

*H57A MC68HC05H12

*H62A MC68HC908AS60 or AZ60

8H62A MC68HC708AZ60

*H62P MC68HC908AT32

*H70H MC68HC705SJ7 or JJ7 or JP7 or SP7

*H72J MC68HC705C8A

*H73K MC68HC812AV4

*H74Y MC68HC08AZ60A ?

*H75A MC68HC705P6

*H77A MC68HC705C9A

*H86A MC68HC711KG2

*H86X MC68HC(7)11KG2 ??

*H89E MC68HC11E20

*H91F MC68HC912B32

*H94K MC68HC08AS20

*H95B MC68HC(7)11K4,MC68HC11KS2 ??

*H96J MC68HC05JJ6, JP6

*H96P MC68HC711KS8

*H98X MC68HC11KS8

*J15G MC68HC912BC32

*J20X MC68HC908GP32

*J26H MC68HC08AS20

*J26R MC68HC08AS20

*J27F MC68HC08AS32

*J34P MC68HC12BE32

*J35D MC68HC08AZ60

*J37F MC68HC908MR24

*J38M MC68HC12BE32

*J41C MC68HC05SU3A

*J43F MC68HC705V12 ??

*J43H MC68HC705V12

*J53W MC68HRC705JP7

*J54E MC68HC912B32

*J54W MC68HRC705JP7

*J61D MC68HC908AS60

*J64Y MC68HC912B32

*J66D MC68HC08AZ32

*J66H MC68HC705J1A

*J73R MC68HC705C8A

*J74Y MC68HC908AS60

*J79Y MC68HC908BD48

*J88Y MC68HC908JK3

*K00J MC68HC908RK2

*K00W MC68HC11K4

*K02S MC68HC05P4A

*K03B MC68HC705C9A

*K05W MC68HC711D3

*K07B MC68HC705P6

*K07E MC68HC11KS2

*K08B MC68HC705C8A

*K08S MC68HC908GP32

*K08W MC68HC711KS2

*K11N MC68HC908LD64

*K13J MC68HC12D60

*K17X MC68HC908GP32CFB

*K20C MC68HC705B32

*K20R MC68HC05PV8A

*K25E MC68HC912BC32

*K29E MC68HC912BD32

*K31D MC68HC912DG128A

*K36N MC9S12DP256

*K38K M68HC912D60

*K39K MC68HC908SR12

*K45D MC68HC908KX8, KX2

*K45H MC68HC908JB8

*K50E MC68HC912DG128, DA128

*K54X MC68HC711K4

*K56G MC68HC908AB32

*K59D MC68HC08JB8 or MC68HC711K4 ???

*K59H PC527283MFU

*K71E MC68HC908AS60 ? (PLCC52)

*K75F MC68HC912D60

*K76A MC68HC12DA128

*K78X MC9S12H256

*K79X MC9S12DP256/A256, MSE9S12D256B

*K81H MC68HC711E9

*K82H MC68HC11E20

*K85K MC68HC908AZ60A/AS60A

*K85V MC68HC908AZ60A

*K91D MC68HC912DG128

*K92R MC68HC908GP32CFB

*L00M MC9S12DP512, MSE9S12DP512

0L01Y MSE9S12DT256

*L02H M68HC912D60

*L02M MC68HC08AZ48A

*L05H M68HC912DT128

*L06H MC68HC908SR12

*L07H MC68HC908AB32

0L08M MSE9S12E128

*L09H MC68HC908KX8/KX2

*L09S MSE9S12C128

3L11Y MSE9S08GB60A

*L15P MSE9S12E128

*L15Y MC9S12XDP512V2,MSE9S12XDP512

0L16X MSE9S08AW60

0L16Y MSE9S12HZ256

*L19E MC68HC908JL3

1L19S MSE9S12NE64

0L24K MSE9S12T64

0L24N MSE9S12UF32

*L26M MC68HC912D60

1L27M 68HC912DG128

*L28M MC68HC12D60

*L31K MC68HC08JL3E

*L31R MSE9S08GB60

*L31V MC68HC908AS60A/AZ60A

*L32X MC68HC08AZ32A

0L33R MSE9S08RG60

*L35K MC68HC08 ??

*L35X MC68HC08JL3E

*L36W MC68HC908JL3E

*L39J MC68HC908JL8

*L40K MC9S12DG128/DT128, MSE9S12DT128

0L40V MSE9S12XDP512

*L40X MC68HC08AZ60A

0L42M MSE9S12T64

0L43P MSE9S12D64/DG64

0L43X MSE9S12E256

*L45J MC9S12C32, MSE9S12C32

*L47P MC908AP32 ?

0L47P MSE908AP64

2L47P MSE908AP64

3L47P MSE908AP64

4L47P MSE908AP64A

*L51J M68HC912D60

*L51W MC68HC908SR12

*L52H MC68HC08AZ32A

*L53J MC68HC908GR8

*L54J MC68HC908MR32 or 16

*L59X MC68HC908AB32

1L59W MC9S12DT128

*L61N MC68HC08JL8

*L69J MC68HC908QT1-4 or QY1-4

*L69Y MC68HC08JL8

2L71Y MSE9S08RE16

0L72A MC68HC08AB16A

5L74N MSE9S12KG128

*L77N MC68HC908JL3E/JK3E/JK1E

0L78P MSE9S08RE16

0L80R MSE9S12B128

0L85D MSE9S12DT128

*L86C MSE9S12T64

*L86D MSE9S12D64/DG64/DJ64/A64/D32/A32

3L87X MSE9S08QB8

*L85D MC9S12A128 or DTB128

*L86D MC9S12D64

*L87J MC68HC908AZ60A or AS60A

2L87X MSE908QB8

*L91N MC9S12DP256B/DT256

0L94R MSE9S12DT128

*L96S MC68HC908GP32CFB

0M11F MSE9S08RG60

0M15D MSE9S08QD4

0M20A MSE9S08RG60

1M21A MSE9S08RE16

0M25D MSE908AP64

1M25D MSE908AP64A

2M25D MSE908AP64

1M34C MSE9S12C32

0M42E MSE9S12XDG128

0M45H MSE90S08RE16

*M62B MSE908QB8

0M65G MSE9S12B128

0M66G MSE9S12C128

0M89C MSE9S12DG64

2M70C MSE9S08GT16A

0M75B MSE9S08AW60

1M75B MSE9S08AW60

3M75B MSE908EY16A

5M75B MSE9S08AW60

0M77B MSE9S08QG8

1M77B MSE908QG8

3M77B MSE9S08QG8

0M89C MSE9S12D64

[RogerAder]

Имеется вот такая моторолка HC05E6, а также некоторая инфа по протоколу Hitag2

HC05E6.pdf

ht2protocol.pdf

[RogerAder]

А вот небольшой справочник по маркировке SMD-шных компонетов

SMD_codebook.rar
